Membuat Aplikasi QR Code Scanner menggunakan Kotlin

Halo semuanya, pada postingan ini saya akan membagikan tutorial sederhana untuk kalian yang baru belajar membuat aplikasi android menggunakan android studio. Pada tutorial sebelumnya kita telah belajar bagaimana membuat aplikasi QR Code generator dengan menggunakan library QRGen. Nah, pada tutorial kali ini kita akan belajar bagaimana membuat aplikasi QR Code scanner dengan menggunakan kotlin. Aplikasi QR Code scanner yang akan kita buat ini dapat melakukan scan QR Code dengan 2 (dua) cara. Cara pertama yaitu dengan scan secara langsung melalui kamera sedangkan cara kedua yaitu dengan upload gambar QR Code dari galeri.

Daftar Isi sembunyikan

1. Project QRCodeScanner

2. Update AndroidManifest.xml

3. Update Gradle

4. Desain User Interface

5. Cek Permission

6. Membuat dialog pilihan metode scan

7. Scan QR Code dari kamera dan menampilkan hasilnya

8. Scan QR Code dari galeri dan menampilkan hasilnya

9. Kode lengkap MainActivity.kt

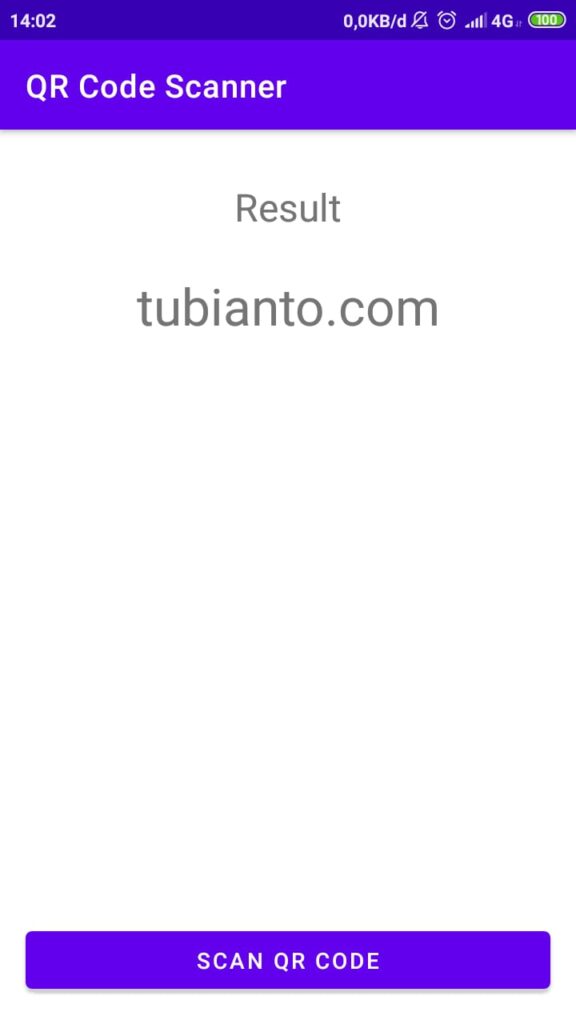

10. Screenshot

Project QRCodeScanner

Hal pertama yang harus kita lakukan tentu membuat project baru di android studio. Pada tutorial ini saya memberikan nama projeknya “QRCodeScanner”.

Update AndroidManifest.xml

Pada file AndroidManifest.xml, tambahkan beberapa kode seperti berikut

	<?xml version="1.0" encoding="utf-8"?>
	<manifest xmlns:android="http://schemas.android.com/apk/res/android"
	xmlns:tools="http://schemas.android.com/tools"
	package="com.tubianto.qrcodescanner">

	<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
	<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
	<uses-permission android:name="android.permission.CAMERA" />

	<uses-sdk tools:overrideLibrary="com.google.zxing.client.android" />

	<application
	android:networkSecurityConfig="@xml/network_security_config"
	android:allowBackup="true"
	android:icon="@mipmap/ic_launcher"
	android:label="@string/app_name"
	android:roundIcon="@mipmap/ic_launcher_round"
	android:supportsRtl="true"
	android:theme="@style/Theme.QRCodeScanner">
	<activity
	android:hardwareAccelerated="true"
	android:name=".MainActivity">
	<intent-filter>
	<action android:name="android.intent.action.MAIN" />

	<category android:name="android.intent.category.LAUNCHER" />
	</intent-filter>
	</activity>
	<activity
	android:name="com.journeyapps.barcodescanner.CaptureActivity"
	android:screenOrientation="fullSensor"
	tools:replace="screenOrientation" />
	</application>

	</manifest>

view raw AndroidManifest.xml hosted with

by GitHub

Update Gradle

Implementasi library untuk QR Code Scanner menggunakan kamera

	// QR Code Scanner
	implementation('com.journeyapps:zxing-android-embedded:4.2.0') { transitive = false }
	implementation 'com.google.zxing:core:3.3.0' // For Android SDK versions < 24, Android 14+ support

view raw build.gradle (:app) hosted with

by GitHub

	allprojects {
	repositories {
	google()
	mavenCentral()
	}
	}

view raw build.gradle (Qr Code Scanner) hosted with

by GitHub

Desain User Interface

Buka activity_main.xml, lalu ubah kodenya seperti berikut

	<?xml version="1.0" encoding="utf-8"?>
	<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
	xmlns:app="http://schemas.android.com/apk/res-auto"
	xmlns:tools="http://schemas.android.com/tools"
	android:layout_width="match_parent"
	android:layout_height="match_parent"
	tools:context=".MainActivity">

	<TextView
	android:id="@+id/tv_text"
	android:layout_width="match_parent"
	android:layout_height="wrap_content"
	android:layout_marginStart="16dp"
	android:layout_marginLeft="16dp"
	android:layout_marginTop="32dp"
	android:layout_marginEnd="16dp"
	android:layout_marginRight="16dp"
	android:gravity="center"
	android:text="Result"
	android:textAlignment="center"
	android:textSize="24sp"
	app:layout_constraintEnd_toEndOf="parent"
	app:layout_constraintStart_toStartOf="parent"
	app:layout_constraintTop_toTopOf="parent" />

	<TextView
	android:id="@+id/tv_result"
	android:layout_width="match_parent"
	android:layout_height="wrap_content"
	android:layout_marginStart="16dp"
	android:layout_marginLeft="16dp"
	android:layout_marginTop="24dp"
	android:layout_marginEnd="16dp"
	android:layout_marginRight="16dp"
	android:gravity="center"
	android:text="..."
	android:textAlignment="center"
	android:textSize="32sp"
	app:layout_constraintEnd_toEndOf="parent"
	app:layout_constraintStart_toStartOf="parent"
	app:layout_constraintTop_toBottomOf="@+id/tv_text" />

	<Button
	android:layout_width="match_parent"
	android:layout_height="wrap_content"
	android:layout_marginStart="16dp"
	android:layout_marginLeft="16dp"
	android:layout_marginEnd="16dp"
	android:layout_marginRight="16dp"
	android:layout_marginBottom="16dp"
	android:onClick="clickScan"
	android:text="Scan QR Code"
	app:layout_constraintBottom_toBottomOf="parent"
	app:layout_constraintEnd_toEndOf="parent"
	app:layout_constraintStart_toStartOf="parent" />

	</androidx.constraintlayout.widget.ConstraintLayout>

view raw activity_main.xml hosted with

by GitHub

Cek Permission

Cek apakah user sudah mengizinkan semua permission


	private fun checkPermission(){
	if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
	when (PackageManager.PERMISSION_DENIED) {
	checkSelfPermission(Manifest.permission.WRITE_EXTERNAL_STORAGE) -> {
	requestPermissions(
	arrayOf(Manifest.permission.WRITE_EXTERNAL_STORAGE),
	WRITE_EXTERNAL_STORAGE_PERMISSION_CODE
	)
	}
	checkSelfPermission(Manifest.permission.READ_EXTERNAL_STORAGE) -> {
	requestPermissions(
	arrayOf(Manifest.permission.READ_EXTERNAL_STORAGE),
	READ_EXTERNAL_STORAGE_PERMISSION_CODE
	)
	}
	checkSelfPermission(Manifest.permission.CAMERA) -> {
	requestPermissions(
	arrayOf(Manifest.permission.CAMERA),
	CAMERA_PERMISSION_CODE
	)
	}
	}
	}
	}

	override fun onRequestPermissionsResult(
	requestCode: Int,
	permissions: Array<out String>,
	grantResults: IntArray
	) {
	super.onRequestPermissionsResult(requestCode, permissions, grantResults)
	when (requestCode) {
	WRITE_EXTERNAL_STORAGE_PERMISSION_CODE -> if (grantResults.isNotEmpty()) {
	if (grantResults[0] == PackageManager.PERMISSION_DENIED) {
	Toast.makeText(this, "Anda perlu memberikan semua izin untuk menggunakan aplikasi ini.", Toast.LENGTH_SHORT).show()
	finish()
	}
	}
	READ_EXTERNAL_STORAGE_PERMISSION_CODE -> if (grantResults.isNotEmpty()) {
	if (grantResults[0] == PackageManager.PERMISSION_DENIED) {
	Toast.makeText(this, "Anda perlu memberikan semua izin untuk menggunakan aplikasi ini.", Toast.LENGTH_SHORT).show()
	finish()
	}
	}
	CAMERA_PERMISSION_CODE -> if (grantResults.isNotEmpty()) {
	if (grantResults[0] == PackageManager.PERMISSION_DENIED){
	Toast.makeText(this, "Anda perlu memberikan semua izin untuk menggunakan aplikasi ini.", Toast.LENGTH_SHORT).show()
	finish()
	}
	}
	}
	}

view raw MainActivity.kt hosted with

by GitHub

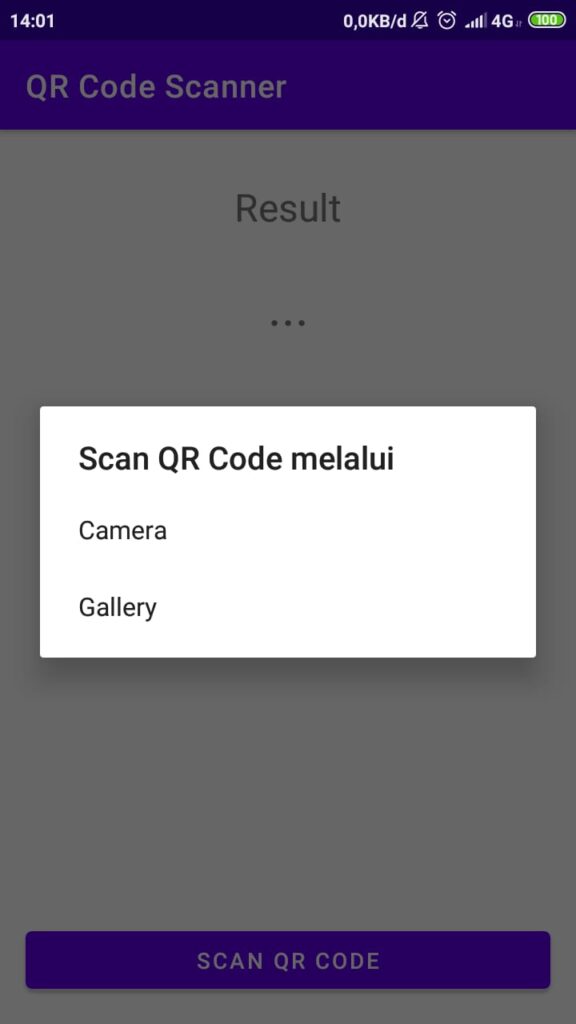

Membuat dialog pilihan metode scan

Ketika tombol “Scan QR Code” di tekan, maka akan muncul dialog pilihan metode scan melalui kamera atau galeri.


	fun clickScan(view: View) {
	val scanOptions = arrayOf<String>("Camera", "Gallery")
	AlertDialog.Builder(this)
	.setTitle("Scan QR Code melalui")
	.setItems(scanOptions) { _, which-> when (which) {
	0 -> openCamera()
	1 -> openGallery()
	} }
	.create()
	.show()
	}

view raw MainActivity.kt hosted with

by GitHub

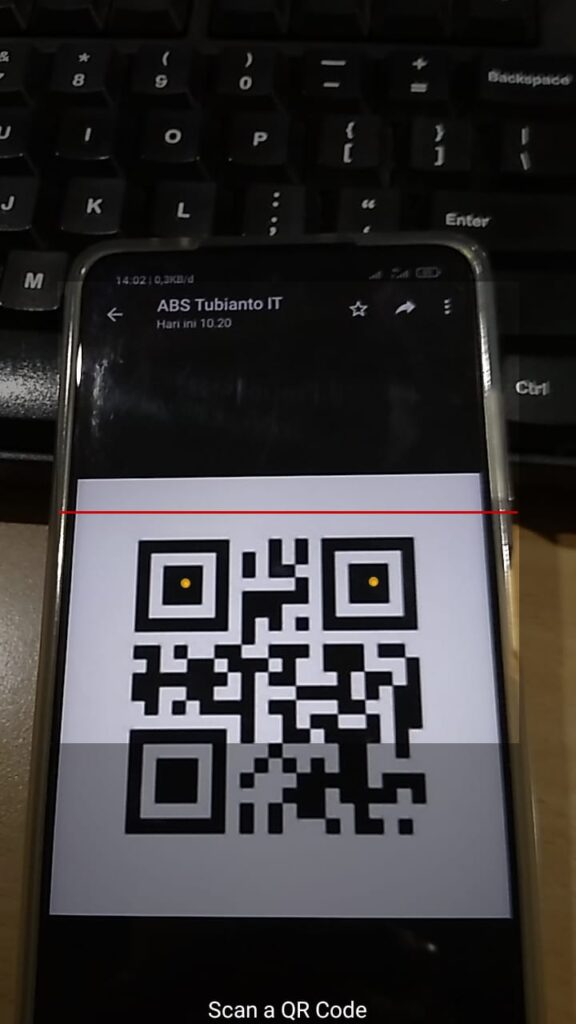

Scan QR Code dari kamera dan menampilkan hasilnya

Berikut kode untuk scan QR Code dengan kamera dan menampilkan hasil scannya pada textview

	private fun openCamera() {
	val qrScan = IntentIntegrator(this)
	qrScan.setDesiredBarcodeFormats(IntentIntegrator.QR_CODE)
	qrScan.setPrompt("Scan a QR Code")
	qrScan.setOrientationLocked(false)
	qrScan.setBeepEnabled(true)
	qrScan.setBarcodeImageEnabled(true)
	//initiating the qr code scan
	qrScan.initiateScan()
	}

	override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
	val result = IntentIntegrator.parseActivityResult(requestCode, resultCode, data)
	if (result != null)
	{
	//if qrcode has nothing in it
	if (result.contents == null){
	Toast.makeText(this, "Result Not Found", Toast.LENGTH_LONG).show()
	} else {
	//if qr contains data
	try {
	val contents = result.contents

	tvResult.text = contents
	}
	catch (e: JSONException) {
	e.printStackTrace()
	//if control comes here
	//that means the encoded format not matches
	//in this case you can display whatever data is available on the qrcode
	//to a toast
	Toast.makeText(this, result.contents, Toast.LENGTH_LONG).show()
	}
	}
	} else {
	super.onActivityResult(requestCode, resultCode, data)
	}
	}

view raw MainActivity.kt hosted with

by GitHub

Scan QR Code dari galeri dan menampilkan hasilnya

Berikut kode untuk scan QR Code dari galeri dan menampilkan hasil scannya pada textview

	private fun openGallery() {
	val galleryIntent = Intent(Intent.ACTION_PICK, MediaStore.Images.Media.EXTERNAL_CONTENT_URI)
	resultLauncherGallery.launch(galleryIntent)
	}

	var resultLauncherGallery = registerForActivityResult(ActivityResultContracts.StartActivityForResult()) { result ->
	if (result.resultCode == Activity.RESULT_OK) {
	val data: Intent? = result.data

	val imageUri = data!!.data!!
	val imagePath = convertMediaUriToPath(imageUri)
	val imgFile = File(imagePath)
	scanImageQRCode(imgFile)
	} else {
	Toast.makeText(this, "Result Not Found", Toast.LENGTH_LONG).show()
	}
	}

	private fun convertMediaUriToPath(uri: Uri):String {
	val proj = arrayOf<String>(MediaStore.Images.Media.DATA)
	val cursor = contentResolver.query(uri, proj, null, null, null)
	val columnIndex = cursor!!.getColumnIndexOrThrow(MediaStore.Images.Media.DATA)
	cursor.moveToFirst()
	val path = cursor.getString(columnIndex)
	cursor.close()
	return path
	}

	private fun scanImageQRCode(file: File){
	val inputStream: InputStream = BufferedInputStream(FileInputStream(file))
	val bitmap = BitmapFactory.decodeStream(inputStream)
	val decoded = scanQRImage(bitmap)
	Log.i("QrTest", "Decoded string=$decoded")
	}

	private fun scanQRImage(bMap: Bitmap): String? {
	var contents: String? = null
	val intArray = IntArray(bMap.width * bMap.height)
	//copy pixel data from the Bitmap into the 'intArray' array
	bMap.getPixels(intArray, 0, bMap.width, 0, 0, bMap.width, bMap.height)
	val source: LuminanceSource = RGBLuminanceSource(bMap.width, bMap.height, intArray)
	val bitmap = BinaryBitmap(HybridBinarizer(source))
	val reader: Reader = MultiFormatReader()
	try {
	val result: Result = reader.decode(bitmap)
	contents = result.text

	tvResult.text = contents
	} catch (e: Exception) {
	Log.e("QrTest", "Error decoding qr code", e)
	Toast.makeText(this, "Error decoding QR Code, Mohon pilih gambar QR Code yang benar!", Toast.LENGTH_SHORT).show()
	}
	return contents
	}

view raw MainActivity.kt hosted with

by GitHub

Kode lengkap MainActivity.kt

Berikut kode lengkap MainActivity.kt

	package com.tubianto.qrcodescanner

	import android.Manifest
	import android.app.Activity
	import android.app.AlertDialog
	import android.content.Intent
	import android.content.pm.PackageManager
	import android.graphics.Bitmap
	import android.graphics.BitmapFactory
	import android.net.Uri
	import android.os.Build
	import android.os.Bundle
	import android.provider.MediaStore
	import android.util.Log
	import android.view.View
	import android.widget.TextView
	import android.widget.Toast
	import androidx.activity.result.contract.ActivityResultContracts
	import androidx.appcompat.app.AppCompatActivity
	import com.google.zxing.*
	import com.google.zxing.common.HybridBinarizer
	import com.google.zxing.integration.android.IntentIntegrator
	import org.json.JSONException
	import java.io.BufferedInputStream
	import java.io.File
	import java.io.FileInputStream
	import java.io.InputStream

	/**
	* Created by Tubianto on 18/06/2021.
	*/
	class MainActivity : AppCompatActivity() {
	private lateinit var tvResult: TextView

	private var WRITE_EXTERNAL_STORAGE_PERMISSION_CODE: Int = 1
	private var READ_EXTERNAL_STORAGE_PERMISSION_CODE: Int = 2
	private var CAMERA_PERMISSION_CODE: Int = 3

	override fun onCreate(savedInstanceState: Bundle?) {
	super.onCreate(savedInstanceState)
	setContentView(R.layout.activity_main)

	init()
	checkPermission()
	}

	private fun init(){
	tvResult = findViewById(R.id.tv_result)
	}

	private fun checkPermission(){
	if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
	when (PackageManager.PERMISSION_DENIED) {
	checkSelfPermission(Manifest.permission.WRITE_EXTERNAL_STORAGE) -> {
	requestPermissions(
	arrayOf(Manifest.permission.WRITE_EXTERNAL_STORAGE),
	WRITE_EXTERNAL_STORAGE_PERMISSION_CODE
	)
	}
	checkSelfPermission(Manifest.permission.READ_EXTERNAL_STORAGE) -> {
	requestPermissions(
	arrayOf(Manifest.permission.READ_EXTERNAL_STORAGE),
	READ_EXTERNAL_STORAGE_PERMISSION_CODE
	)
	}
	checkSelfPermission(Manifest.permission.CAMERA) -> {
	requestPermissions(
	arrayOf(Manifest.permission.CAMERA),
	CAMERA_PERMISSION_CODE
	)
	}
	}
	}
	}

	override fun onRequestPermissionsResult(
	requestCode: Int,
	permissions: Array<out String>,
	grantResults: IntArray
	) {
	super.onRequestPermissionsResult(requestCode, permissions, grantResults)
	when (requestCode) {
	WRITE_EXTERNAL_STORAGE_PERMISSION_CODE -> if (grantResults.isNotEmpty()) {
	if (grantResults[0] == PackageManager.PERMISSION_DENIED) {
	Toast.makeText(this, "Anda perlu memberikan semua izin untuk menggunakan aplikasi ini.", Toast.LENGTH_SHORT).show()
	finish()
	}
	}
	READ_EXTERNAL_STORAGE_PERMISSION_CODE -> if (grantResults.isNotEmpty()) {
	if (grantResults[0] == PackageManager.PERMISSION_DENIED) {
	Toast.makeText(this, "Anda perlu memberikan semua izin untuk menggunakan aplikasi ini.", Toast.LENGTH_SHORT).show()
	finish()
	}
	}
	CAMERA_PERMISSION_CODE -> if (grantResults.isNotEmpty()) {
	if (grantResults[0] == PackageManager.PERMISSION_DENIED){
	Toast.makeText(this, "Anda perlu memberikan semua izin untuk menggunakan aplikasi ini.", Toast.LENGTH_SHORT).show()
	finish()
	}
	}
	}
	}

	fun clickScan(view: View) {
	val scanOptions = arrayOf<String>("Camera", "Gallery")
	AlertDialog.Builder(this)
	.setTitle("Scan QR Code melalui")
	.setItems(scanOptions) { _, which-> when (which) {
	0 -> openCamera()
	1 -> openGallery()
	} }
	.create()
	.show()
	}

	private fun openCamera() {
	val qrScan = IntentIntegrator(this)
	qrScan.setDesiredBarcodeFormats(IntentIntegrator.QR_CODE)
	qrScan.setPrompt("Scan a QR Code")
	qrScan.setOrientationLocked(false)
	qrScan.setBeepEnabled(true)
	qrScan.setBarcodeImageEnabled(true)
	//initiating the qr code scan
	qrScan.initiateScan()
	}

	override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
	val result = IntentIntegrator.parseActivityResult(requestCode, resultCode, data)
	if (result != null)
	{
	//if qrcode has nothing in it
	if (result.contents == null){
	Toast.makeText(this, "Result Not Found", Toast.LENGTH_LONG).show()
	} else {
	//if qr contains data
	try {
	val contents = result.contents

	tvResult.text = contents
	}
	catch (e: JSONException) {
	e.printStackTrace()
	//if control comes here
	//that means the encoded format not matches
	//in this case you can display whatever data is available on the qrcode
	//to a toast
	Toast.makeText(this, result.contents, Toast.LENGTH_LONG).show()
	}
	}
	} else {
	super.onActivityResult(requestCode, resultCode, data)
	}
	}

	private fun openGallery() {
	val galleryIntent = Intent(Intent.ACTION_PICK, MediaStore.Images.Media.EXTERNAL_CONTENT_URI)
	resultLauncherGallery.launch(galleryIntent)
	}

	var resultLauncherGallery = registerForActivityResult(ActivityResultContracts.StartActivityForResult()) { result ->
	if (result.resultCode == Activity.RESULT_OK) {
	val data: Intent? = result.data

	val imageUri = data!!.data!!
	val imagePath = convertMediaUriToPath(imageUri)
	val imgFile = File(imagePath)
	scanImageQRCode(imgFile)
	} else {
	Toast.makeText(this, "Result Not Found", Toast.LENGTH_LONG).show()
	}
	}

	private fun convertMediaUriToPath(uri: Uri):String {
	val proj = arrayOf<String>(MediaStore.Images.Media.DATA)
	val cursor = contentResolver.query(uri, proj, null, null, null)
	val columnIndex = cursor!!.getColumnIndexOrThrow(MediaStore.Images.Media.DATA)
	cursor.moveToFirst()
	val path = cursor.getString(columnIndex)
	cursor.close()
	return path
	}

	private fun scanImageQRCode(file: File){
	val inputStream: InputStream = BufferedInputStream(FileInputStream(file))
	val bitmap = BitmapFactory.decodeStream(inputStream)
	val decoded = scanQRImage(bitmap)
	Log.i("QrTest", "Decoded string=$decoded")
	}

	private fun scanQRImage(bMap: Bitmap): String? {
	var contents: String? = null
	val intArray = IntArray(bMap.width * bMap.height)
	//copy pixel data from the Bitmap into the 'intArray' array
	bMap.getPixels(intArray, 0, bMap.width, 0, 0, bMap.width, bMap.height)
	val source: LuminanceSource = RGBLuminanceSource(bMap.width, bMap.height, intArray)
	val bitmap = BinaryBitmap(HybridBinarizer(source))
	val reader: Reader = MultiFormatReader()
	try {
	val result: Result = reader.decode(bitmap)
	contents = result.text

	tvResult.text = contents
	} catch (e: Exception) {
	Log.e("QrTest", "Error decoding qr code", e)
	Toast.makeText(this, "Error decoding QR Code, Mohon pilih gambar QR Code yang benar!", Toast.LENGTH_SHORT).show()
	}
	return contents
	}
	}
